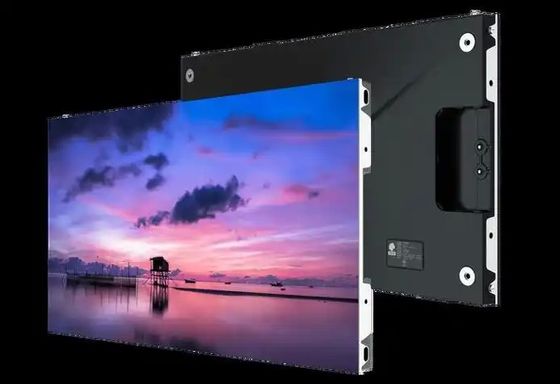

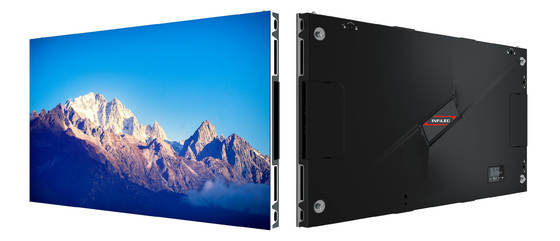

P0.9375 Rgb High Resolution Led Panel Indoor Fixed Led Video Wall

P0.9375 Rgb High Resolution Led Panel Indoor Fixed Led Video Wall
P0.9375 Rgb High Resolution Led Panel Indoor Fixed Led Video Wall P0.9375 Rgb High Resolution Led Panel Indoor Fixed Led Video Wall P0.9375 Rgb High Resolution Led Panel Indoor Fixed Led Video Wall P0.9375 Rgb High Resolution Led Panel Indoor Fixed Led Video Wall P0.9375 Rgb High Resolution Led Panel Indoor Fixed Led Video Wall

Μεγάλες Εικόνας :  P0.9375 Rgb High Resolution Led Panel Indoor Fixed Led Video Wall

Λεπτομέρειες:
Τόπος καταγωγής: Βομβαρδισμός
Μάρκα: Longda LED
Πιστοποίηση: CE/FCC/CCC/RoHs/ISO9001/ISO14001
Αριθμό μοντέλου: Π0.9375
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 1 τ.μ.
Τιμή: Usd799~Usd1099/Sqm(price is negotiable)
Συσκευασία λεπτομέρειες: Συσκευασία θήκης πτήσης ή συσκευασία για κόντρα πλακέ
Χρόνος παράδοσης: 15-18 ημέρες
Όροι πληρωμής: , L/C, T/T, Western Union, MoneyGram
Δυνατότητα προσφοράς: 5000 τ.μ. το μήνα

P0.9375 Rgb High Resolution Led Panel Indoor Fixed Led Video Wall

περιγραφή
Επισημαίνω:

P0.9375 RGB LED panel

,

indoor fixed LED video wall

,

high resolution LED display

P0.9375 Rgb High Resolution Led Panel Indoor Fixed Led Video Wall
Product Description

Can be displayed in any area, with a large visual range, soft display images, high pixel density, suitable for indoor viewing.

  • Multi layer circuit board structure design, uniform current distribution, low power consumption, fast heat dissipation
  • Effectively extending the lifespan of the screen, and high reliability
  • The entire board adopts high brightness matte black LED lights, with excellent color mixing performance and high contrast (5000:1)
Product Features
  • Using high-quality mini four in one LED lights
  • Standard resolution, box screen aspect ratio 16:9
  • Accurate positioning of positioning pins ensures the flatness of box splicing
  • The effect is non granular, with good color uniformity and no mosaic phenomenon
  • Can be displayed in any area, with a large visual range, soft display images, high pixel density, suitable for indoor viewing
Technical Parameters
Pitch P0.9375
Module Size 300mm*168.75mm
Module Resolution 320*180
Cabinet Resolution 640*360
Control System Nova Star
Cabinet Size 600mm*337.5mm
Service Front Service
Circuit Common Cathode Circuit
G.W/Cabinet 3.8kg~4kg
Brightness 500nit(300~800nit adjustable)
Refresh Rate 3840
Viewing Angle Horizontal 160º/Vertical 140º
Voltage AC100~240V Ultrathin PFC power supply
Compatiable Function Double power supply&receive card (One for use,one for back up)
Max.consumption/cabinet ≤120W
Ave.consumption/cabinet ≤40W
Applications
P0.9375 Rgb High Resolution Led Panel Indoor Fixed Led Video Wall 0
Frequently Asked Questions
Q1: Are you a manufacturer or trading company?
A1: We are a Professional OEM/ODM manufacturer which has specialized in led display industry for more than 12 years.
Q2: How does your factory do regarding quality control?
A2: Quality is priority. At first, our factory use the best SMT machine is YAMAHA, and all product aging test 48hours at least. Our product approved CE/ROHS/FCC/CCC/ISO9001/ISO 40001 certificate.
Q3: What is your MOQ?
A3: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q4: When will you make the delivery?
A4: We can make the delivery within 3-5 working days for the led modules and 10-30days for the led display with cabinet according to the size and quantities of your order.
